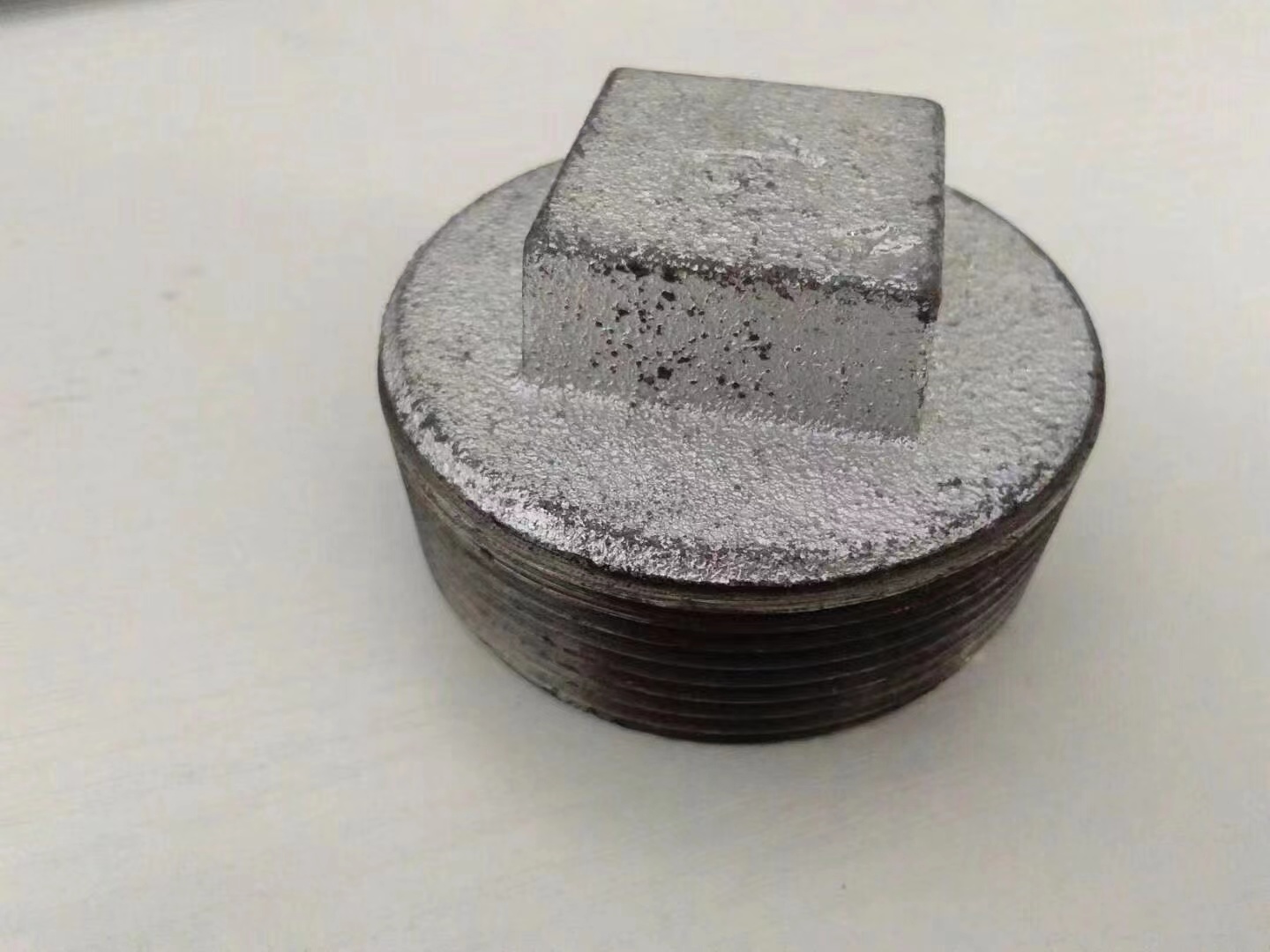

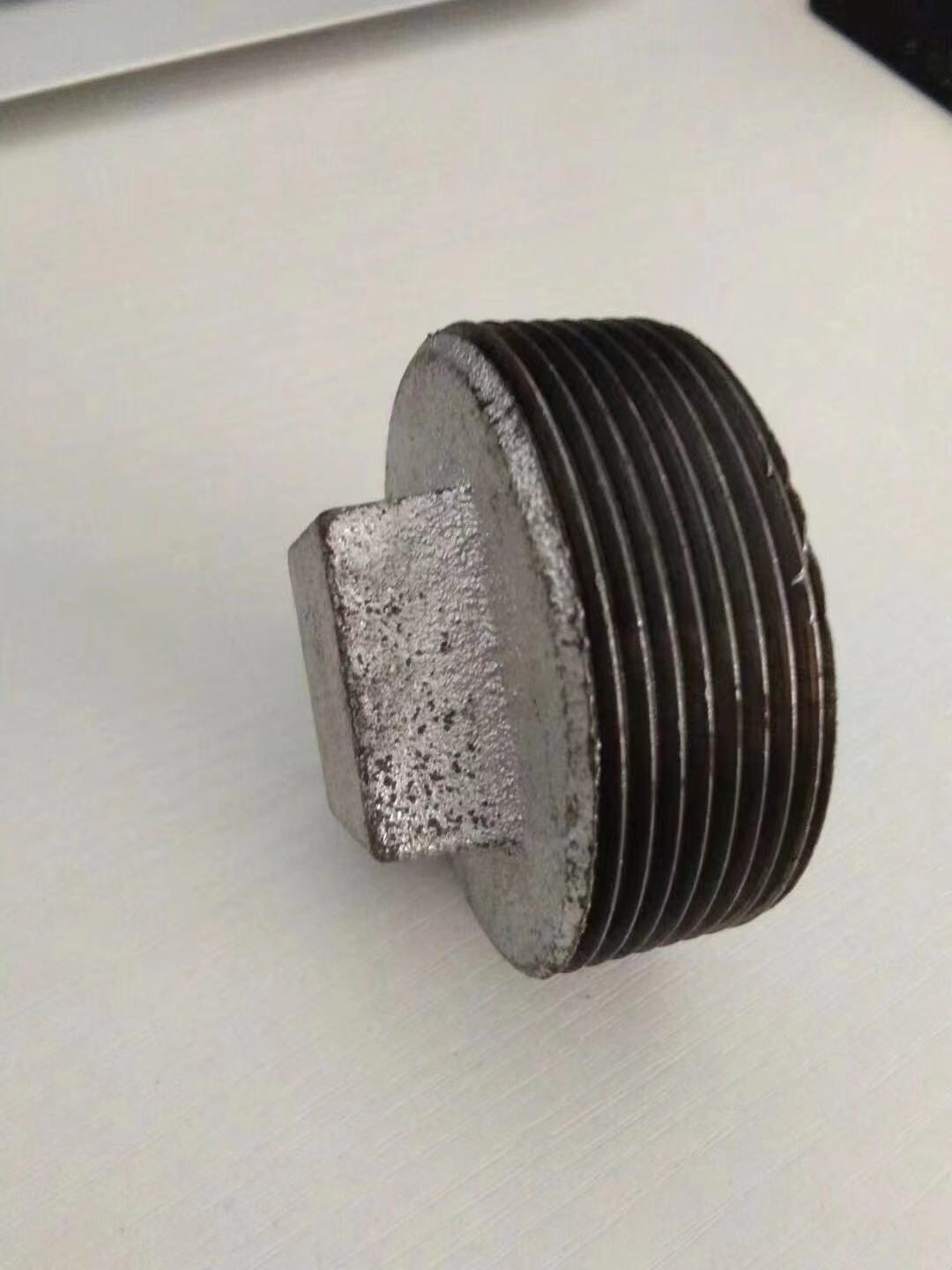

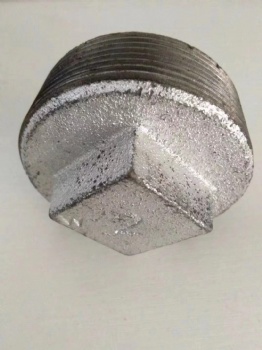

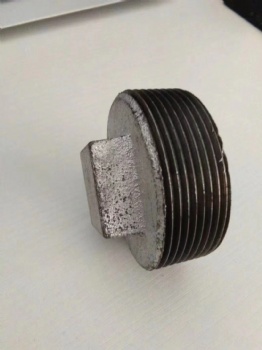

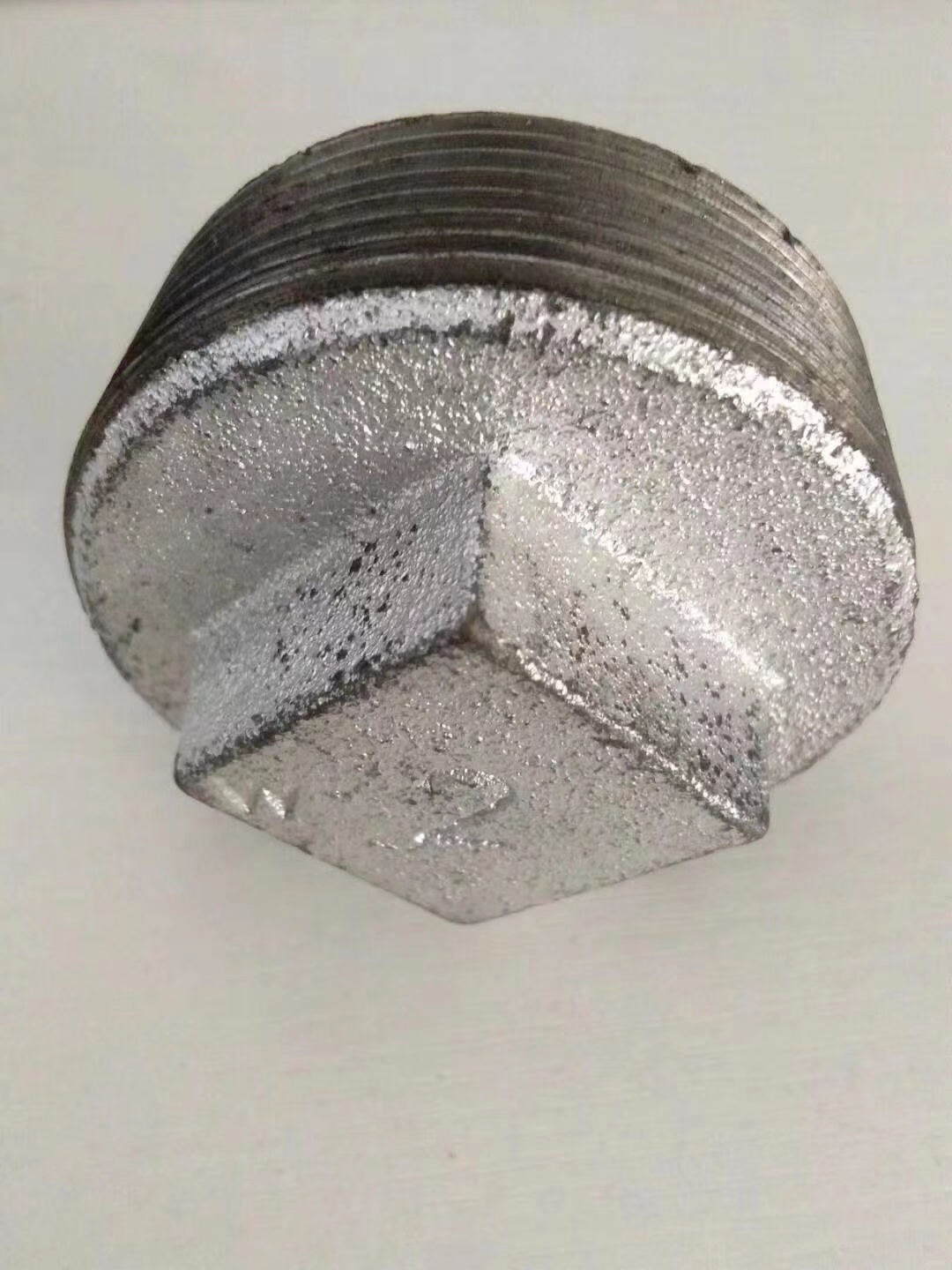

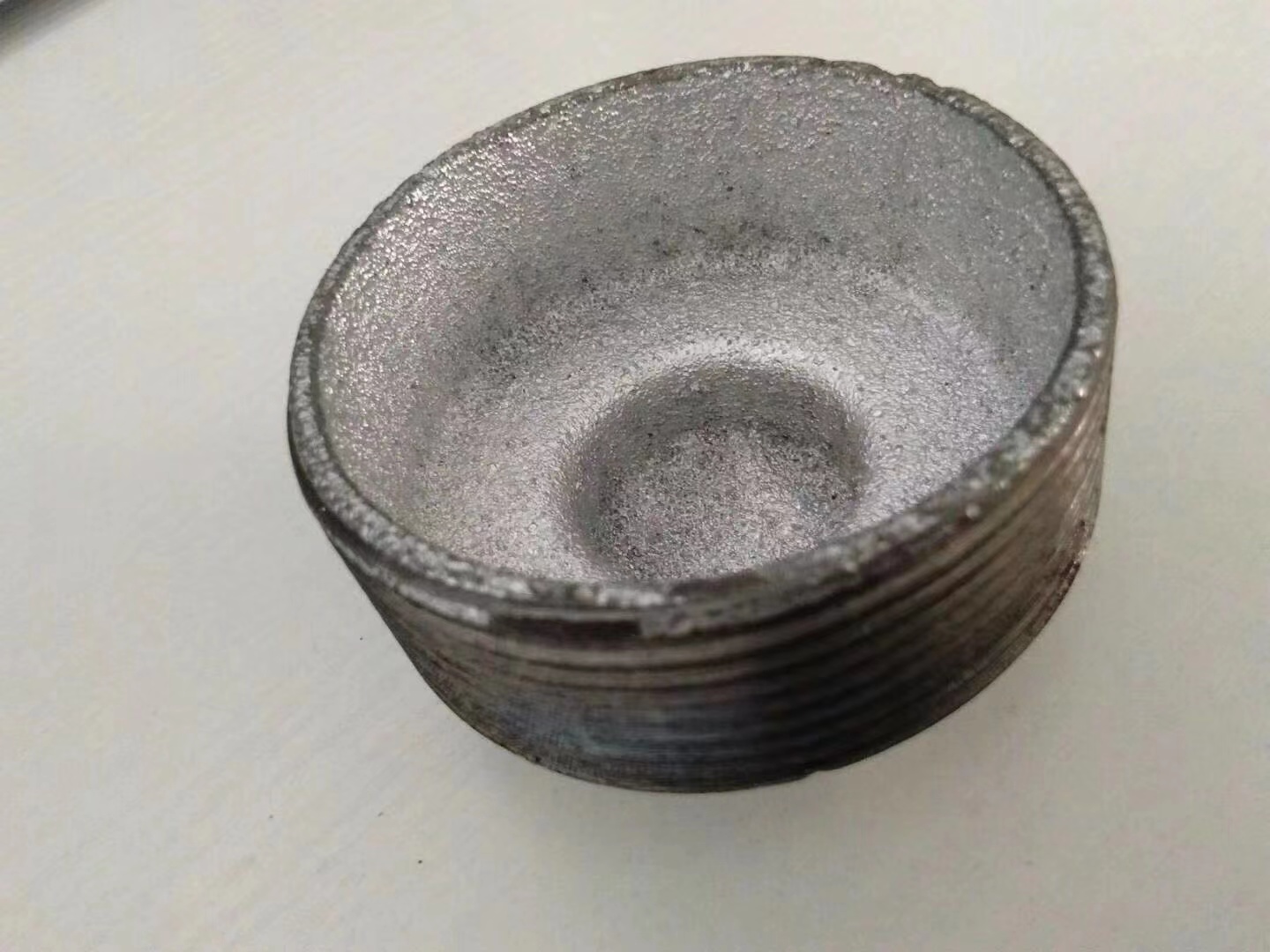

plumbing materials galvanized cast iron pipe fittings pipe connectors gi fittings pipe Plug

Technics: Casting Connection: Male and Female Shape: Equal and Reducing Head Code: Square or Hexagon or Round Application: Pipe Lines Connect Standard: ANSI JIS DIN ASME Certificate: ABNT/FM/BSI/CE/ISO9001 Working Pressure: 300psi/2.07mpa Delivery Time: 25~35 Days Service: OEM and ODM Thread Type: NPT BSP BSPT DIN Grooved Temperature: 40~200 Degree Sample: Provided Freely Surface treatment: Hot Dipped Galvanized Certification: CE, ABNT, TSE, ISI, BSI, ISO9001, FM

Sent E-mail INQUIRY

DETAILS

Material	Malleable Iron
Maximum Pressure	25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature	200°C (392°F)
Tensile Strength	350MPA
Hardness	HB150 (Brinell)
Elongation Rate	10%
Suitable Applications	Water, Oil, Gas, Petro-Chemical
Standard	EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard	EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures	PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Packing Details	Cartons with/without pallets, Double woven bags, Or according to the buyer's requirements.
Delivery Details	According to the quantities and specifications of each order. Normal delivery times are from 30 to 45 days after receiving the deposit.
Shipping Ways	By sea, it is convenient for bulk orders. Cheap shipping cost, usually takes 30-60 days.
	By air, quick delivery, for not very heavyweight orders. Cheaper than Express. Takes around 7-12 days.
	By express, samples, and small order. A little expensive, but very quickly, usually 7-10 days, door to door.
