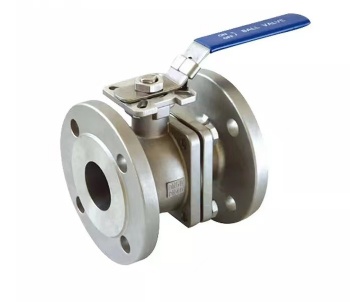

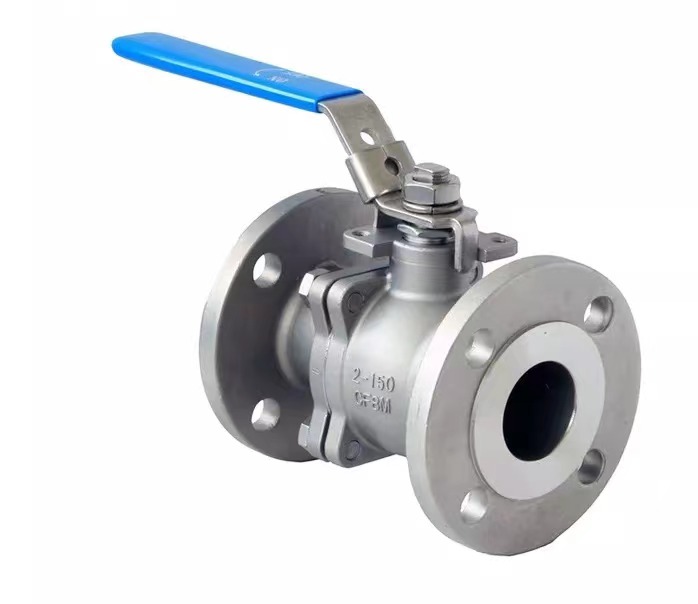

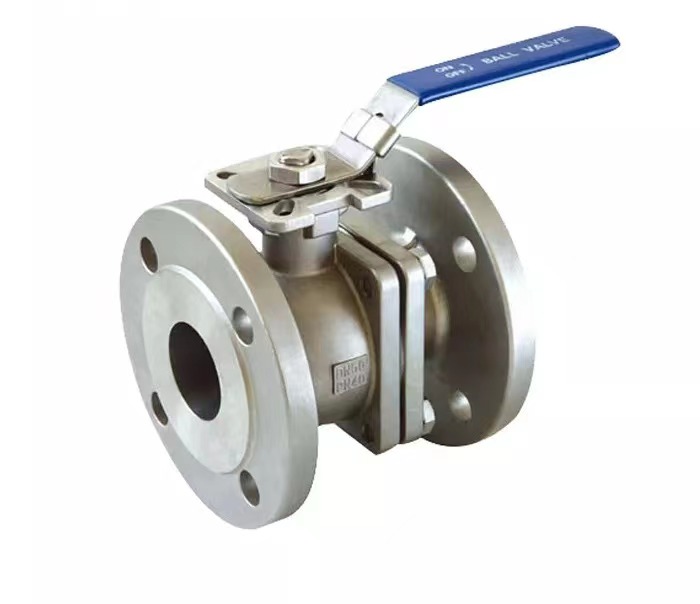

Stainless Steel CF8M WCB 2 Piece Flanged End Ball Valve

Temperature of Media: Medium Temperature Power: Manual Media: Base Port Size: 1/4''~4'' Structure: BALL Certificate: ISO9001:2008 CE material: cast steel Valve Type: Floating Ball Valve Ends Connection: RF, NPT, BW, SW Size: DN15~DN100 Color: Customer Require Packing: Standard Export worthy duly wooden boxs Medium: Water, Oil, Gas, Sea Water, Corrosive Fluid Standard: ANSI BS DIN JIS Connection: Flange Ends

Sent E-mail INQUIRY

DETAILS

type: threaded end, flanged end
material: ss 304/ ss 304l/ ss 316/ ss316l
working pressure: 1000 wog for 2-pc ball valve threaded end
pn 16, 150lbs/ 300lbs, jis 10k/20k for 2-pc ball valve flanged end
bore type: full bore
threaded end: npt, bspt, din 2999
mounting pad: optional
operator: optional lock device handle.

Part Name	Material
Body/Bonnet	WCB	LCB	CF8/CF8M
Ball	A105/F304/F316	F304/F316	F304/F316
Stem	F6A/F304/F316	F304/F316	F304/F316
Seat Ring	PTFE/R-PTFE/A105/F304/F316
Gasket	304 + Flexible Graphite
Packing	PTFE
Bolts	B7	B7	B8
Nuts	2H	4	8

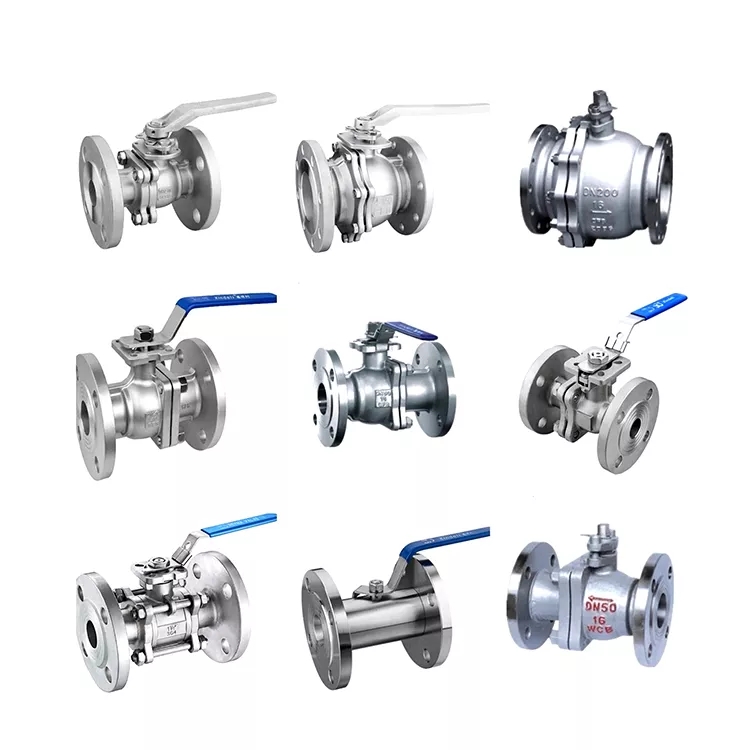

BALL VALVES2.jpg
