DETAILS
| Product Name | Spiral Steel Pipe |
| Material | GR,B,ST52,ST42,ST35,ST45,X42,X52,X56,X60,X85,X70 |
| Size | Size 8"to 142"Outside Diameter 219mm to 3620mm |
| Standard | API 5L,API 5CT,API 5DP,EN10219,ANSI B36,ASTM A53-2007,ANSI B36.ASTM A513-2007,ASME B36.19M-1985,BS 1387,BS 6363,DIN 1626,DIN 1629/4,DIN EN 10217-1-2005,GB/T 8162-1999,GB 13296-2007,GB 18248-2000,10M-2004,BS EN10217,DIN EN 10217-1-2005,A53(A,B),A106(B,C),A210,ST35-ST52,10#-45# |
| Certificates | API5L,ISO 9001:2008,SGB,BV,CCIC. |
| Wall thickness | 5-30mm,SCH10,SCH20,SCH30,STD,SCH40,SCH80,SCH100,SCH120,SCH160,XS,XXS |
| Surface Treatment | black paint,varnish,oil,galvanized,anti-corrosion coated(3PE,3lpe) |
| Pipe Ends | Two endsof the Beveled ENDS,pLASTIC,CAPS(small OD),Iron protector(large OD),Pipe ends with steel support for thin wall |
| Pope Length | 1.Single Random Length and double Random Length. 2.SRL:3M-5.8M DRL:10-11.8M or As clients requested length. 3.Fixed length(5.8m,6m,12m) |
| Packaging | Loose package,bundled pipe with two slings at the both end for easy loading and discharging,End with Plastic caps. |
| Test | Chemical Component Analysls,Mechanical Properties,Technical Properties,Exterior Size Inspection,hydraulic testing,X-ray Test. |
| Application | liquid delivery,Structure pipe,gas delivery. |
| Advantages | 1.Reasonable price with excellent 2.Abundant stock and prompt delivery 3.Rich supply and export experience,sincere service 4.Reliable forwarder,2-hour away from port. |

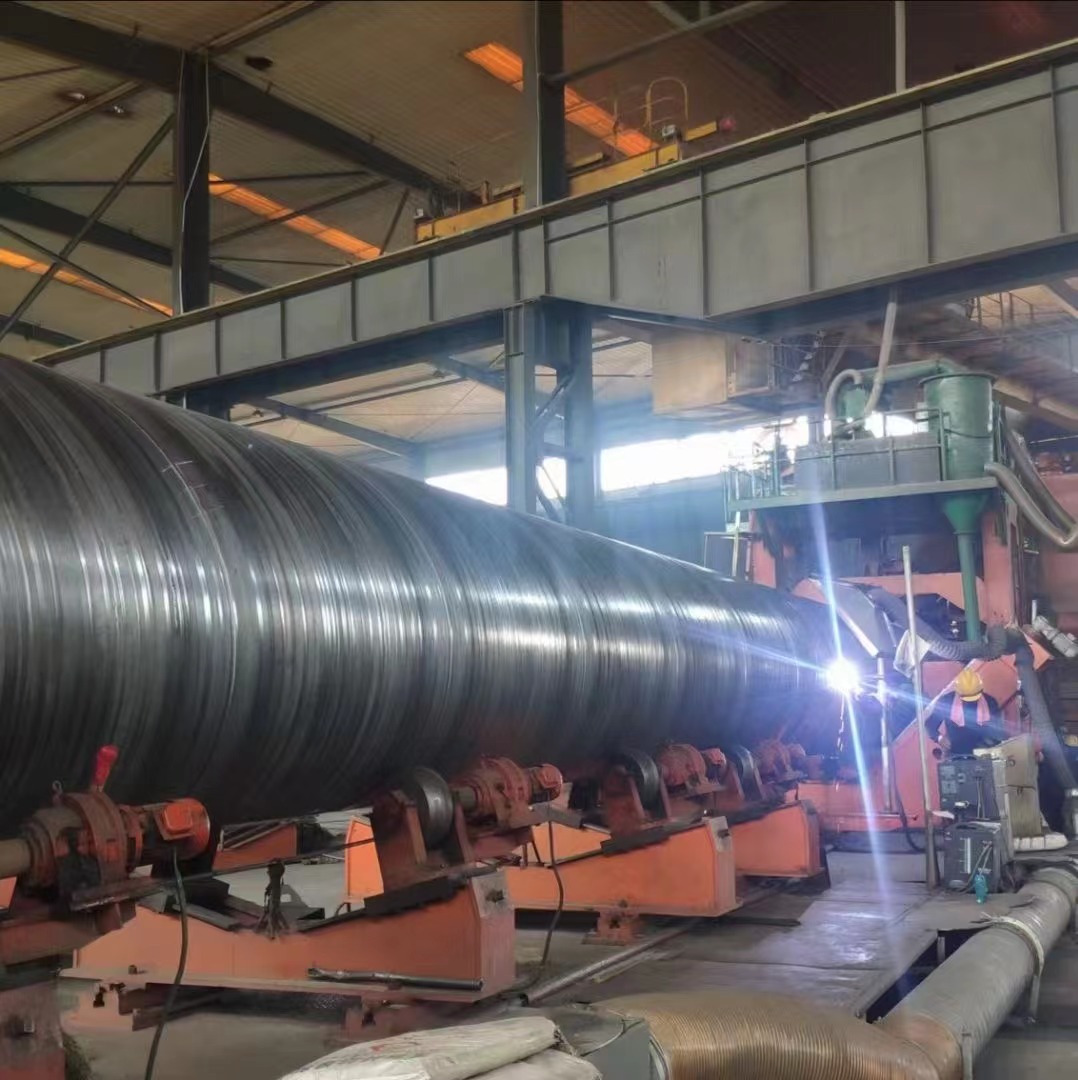

Spiral pipe, also known as spiral steel pipe or spiral welded pipe, is a low carbon structural steel or low alloy structural steel strip according to a certain helix angle (called forming angle) rolled into a tube, and then welded joints made of , It can be produced with a narrow strip of large diameter steel pipe.
