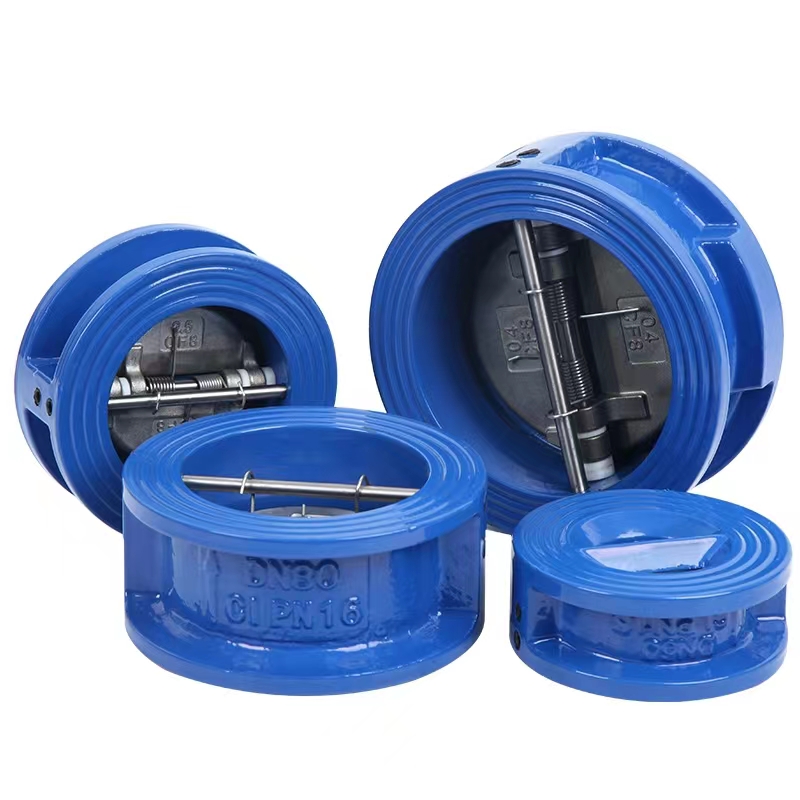

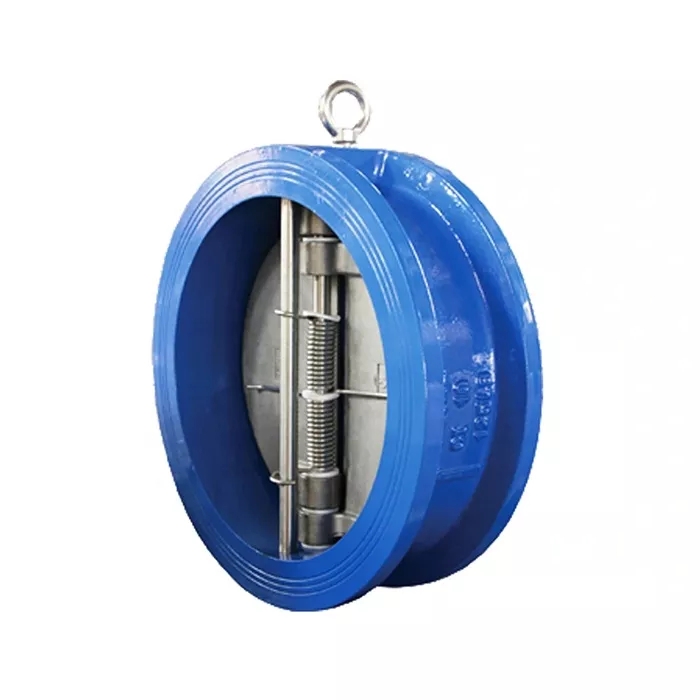

Cast Iron Double Disc Door Wafer Type Dual Plate Check Valve

Model Number: Check valve Application: General, Water,industrial systems Temperature of Media: Normal Temperature Power: Hydraulic Media: Water, Water,Oil,gas and other liquid Port Size: Standard, DN40-DN600 Structure: Check Color: Blue Swing Check Valve: One-Way Check Valve Double Disc Check Valve: Wafer Check Valve Tests: API598 ;DIN3230 Pressure: PN10/16/25 Flange Coneection: EN1092 PN10 PN16 Valve Structure: butterfly check valve

Sent E-mail INQUIRY

DETAILS

Cast Iron Double DIsc Wafer Type Dual Plate Check Valve

Standard	BS5153,DIN3202-F6,DIN3201-F1, AWWA C508
Type	Swing Type , Lift Type, Dual Plate type, Ball Check type
Material	Ductile iron GGG40/50 or Cast IronGG25 Disc seat ring :Brass/Bronze/Stainless steel/ EPDM Body seat ring : Brass/Bronze/Stainless steel Bolt and Nuts : Carbon Steel with zinc plated or SS304,316
Coating	Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting

Package : cartons and wooden cases

check valves 2.jpg
