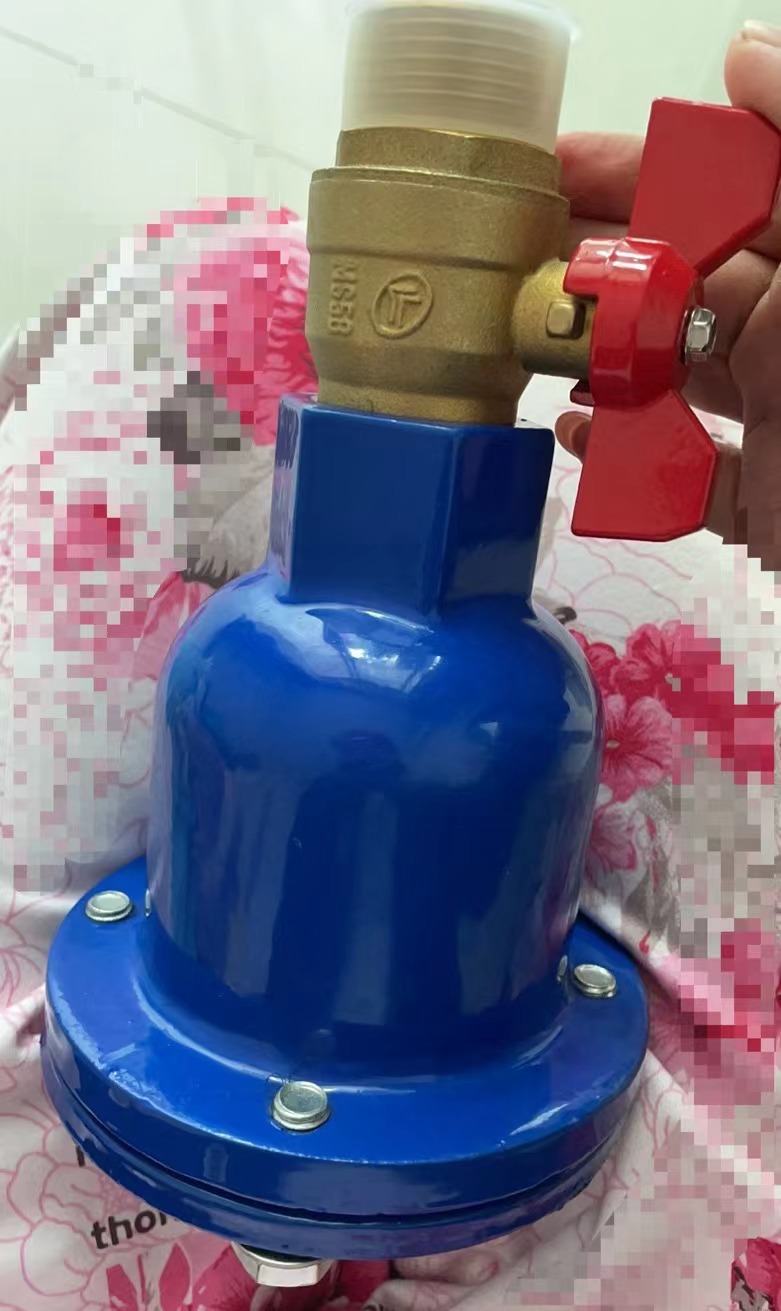

Ductile Iron Threaded Ends Single Orifice Air Vent Release Valve

Model Number: Air Release Valve Application: General Temperature of Media: Normal Temperature Power: Manual Media: Water Port Size: DN25-DN200 Structure: Air Valve Color: Blue Body material: DI/GGG50 Certificate: ISO9001:2008 CE Connection: Flange Ends Size: DN25-DN200 Standard: BS Working pressure: PN10/PN16 Medium: Water Oil Gas Usage: Hydraulic Engineering Working Temperature: Norminal Temperature

Sent E-mail INQUIRY

DETAILS

This valve will effectively remove the air in pipeline and alleviate the resistance of the flow media.
Stainless steel floating ball provides long service life.
Automatically suction air when the pressure is beyond limited to protect the piping system.

Nominal diameter(mm)	Dimension (mm)
Nominal diameter(mm)	L	L1	H	Z	d
25	280	176	330	-	115
32	280	176	330	-	135
50	360	208	475	4	160
65	360	208	475	4	175
80	400	244	552	8	195
100	465	275	623	8	215
150	537	332	686	8	230
200	537	332	686	8/12	245

Materials:

Body/Bonnet	Ductile Iron
Float Ball	Plastic ABS
Gasket	EPDM
Dust Cap	Ductile Iron
Screw Plug	Brass
Nut	Steel
