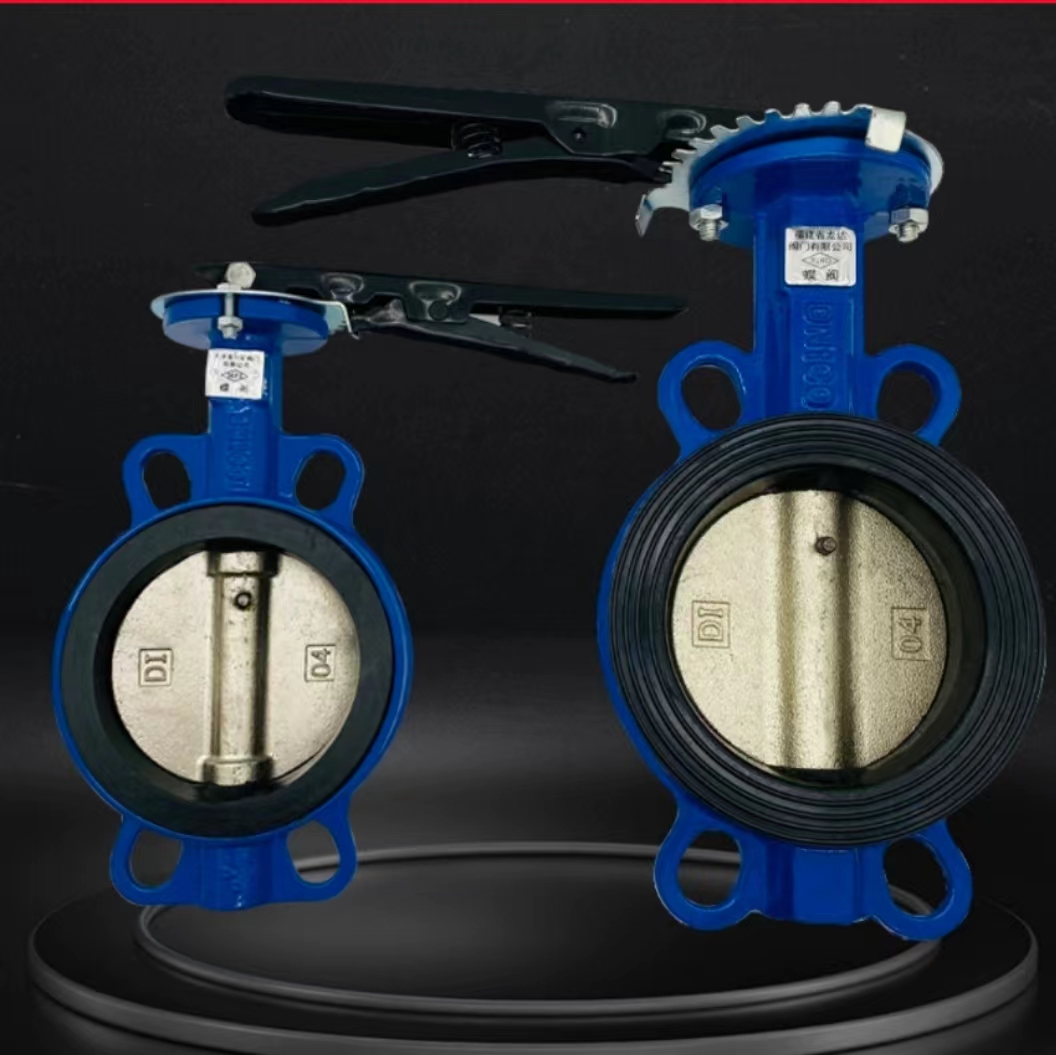

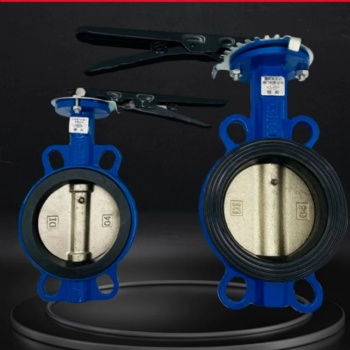

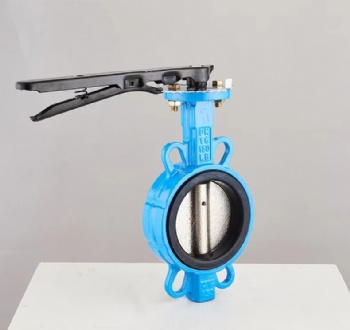

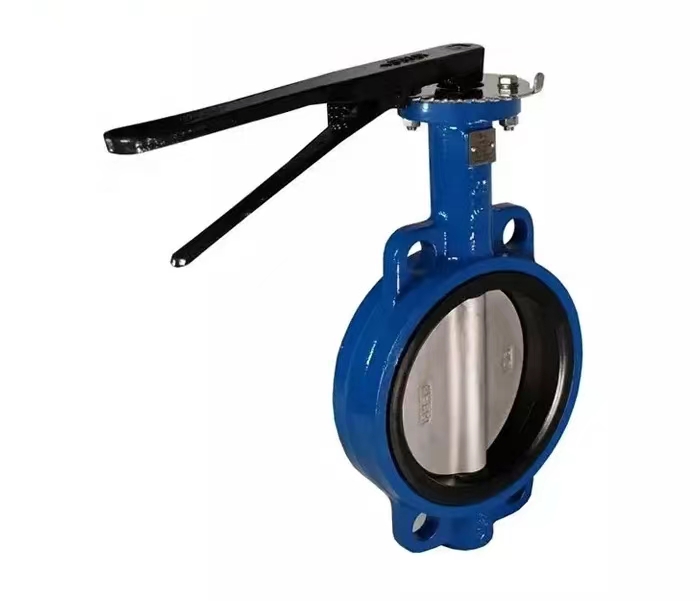

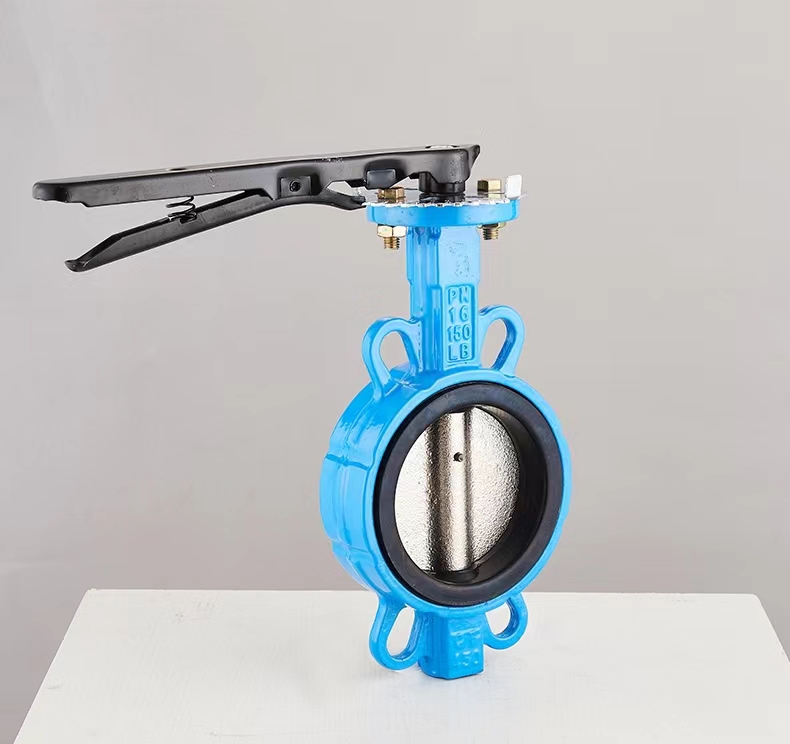

PN16 Lever Operated Ductile Iron Lug Type Resilient Seated Butterfly Valve

Model Number: Butterfly valve Application: General, Industrial Usage, Water Industrial Usage, Household Usage Temperature of Media: Medium Temperature Power: Manual Media: Base Port Size: DN50~DN600 Structure: BUTTERFLY Color: Blue Connection Form: Lug Support Body material: Cast Iron/Ductile Iron/Wcb/CF8m/CF8 Seat Material: NBR/EPDM etc Driving Mode: Lever, Handle, Gear Operator, Pneumatic Actuator Coating: FBE Epoxy Coated Packing: Wooden box Standard: ISO/CE/WRAS Valve type: Lug type butterfly valve

Sent E-mail INQUIRY

DETAILS

Standard	EN593/ ISO 5752 /BS5155/AWWA C504 Flange drilling is according to DIN 2501, BS4504, ANSI B16.1
Type	Double Flange Eccentric, Double Flange Concentric, Water type , Lug type , U type , Grooved type
Material	Body : DI/CI /Carbon Steel/Stainless Steel Disc: DI/Stainless steel 304/316,AL-Bronze Shaft :Stainless steel410/416/420 Seat :EPDM/NBR
Coating	Internal and external with fusion bonded epoxy coating min250μm

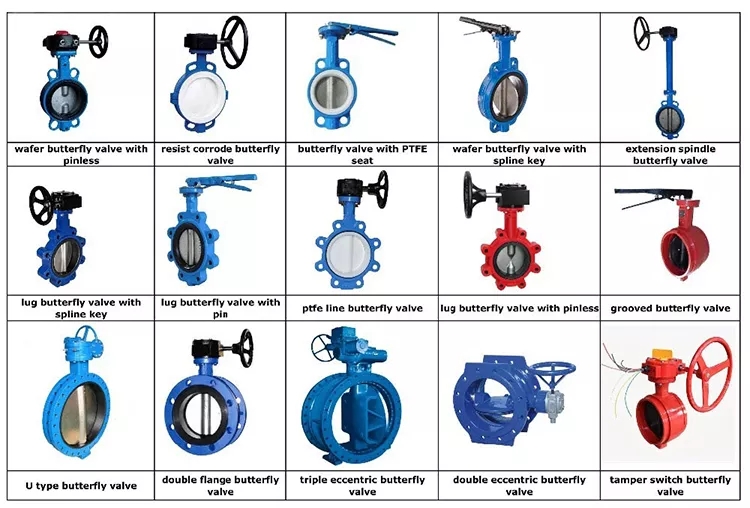

ALL VALVES.jpg
