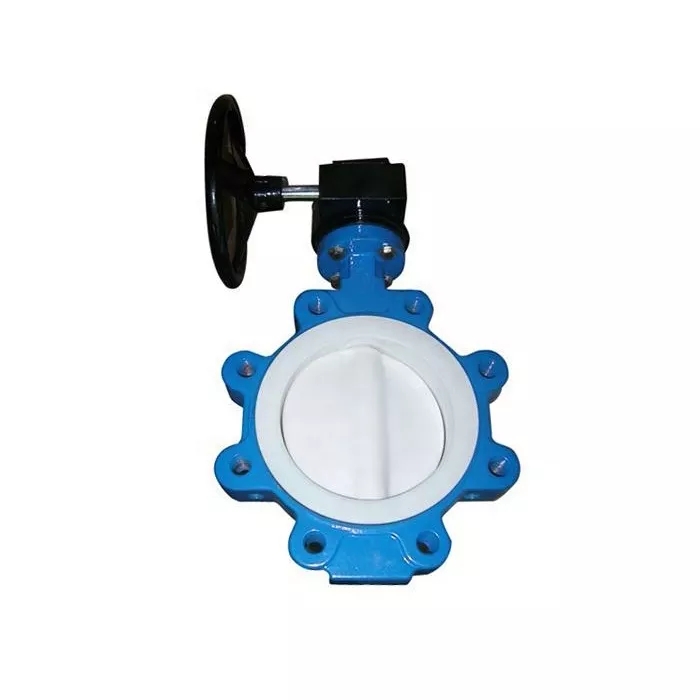

EPDM PTFE PFA Rubber Lining Ductile Iron Cast Iron Wafer Lug Butterfly Valves

Type:Butterfly Valves, PTFE Lined Butterfly Valve Customized support:OEM, ODM Model Number:Butterfly valve Application:General, Paint manufacture and processing Temperature of Media:Medium Temperature Power:Manual Media:Base Port Size:DN50-DN600 Structure:BUTTERFLY Color:Blue Body material:CI/DI/WCB/ALB/CF8/CF8M Avaialable Connection:Flange, Groove, Wafer, Lug, Welded Material:cast iron,ductile iron Working Pressure: PN10/16 Product name: Wafer Type Full PTFE Lined Butterfly Valve Standard: ISO,API,DIN,JIS,BS,AS,EN

Sent E-mail INQUIRY

DETAILS

Ductile Iron Cast Iron Butterfly Valve

Standard	EN593/ ISO 5752 /BS5155/AWWA C504 Flange drilling is according to DIN 2501, BS4504, ANSI B16.1

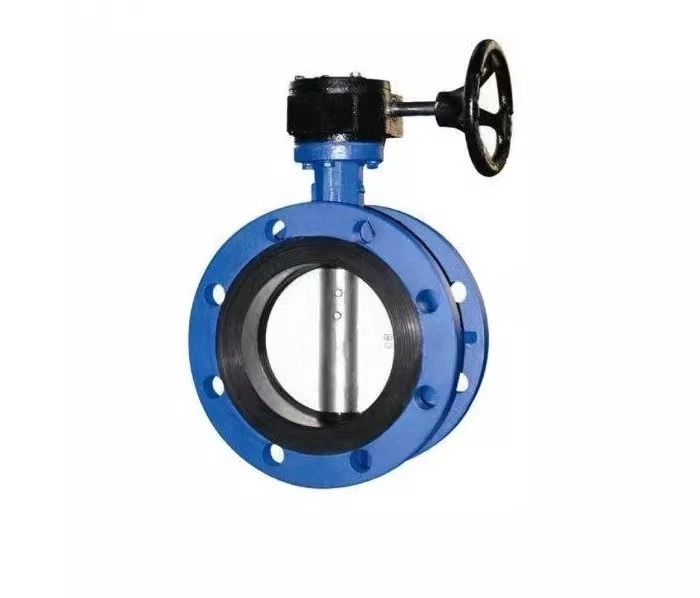

Type	Double Flange Eccentric, Double Flange Concentric, Water type , Lug type , U type , Grooved type
Material	Body : DI/CI /Carbon Steel/Stainless Steel, Disc: DI/Stainless steel 304/316,AL-Bronze ,Shaft :Stainless steel410/416/420 , Seat :EPDM/NBR
Coating	Internal and external with fusion bonded epoxy coating min250μm

VALVE 10.jpg

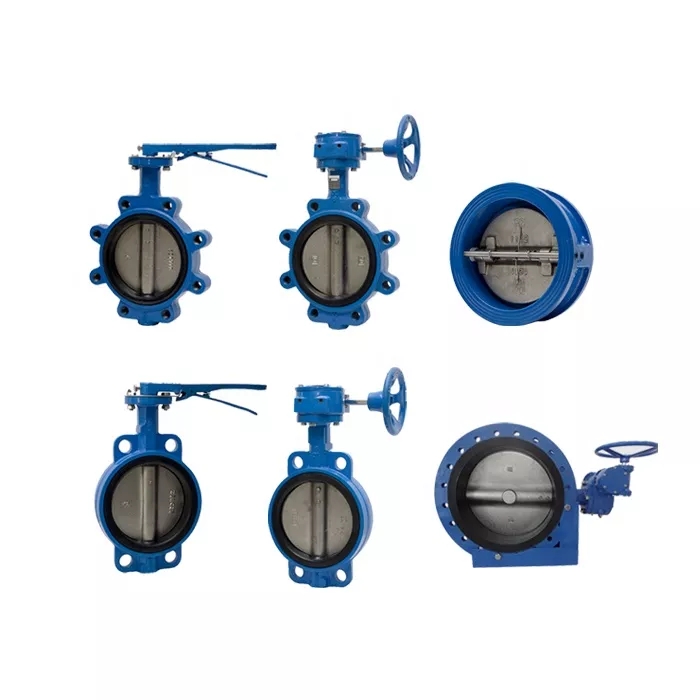

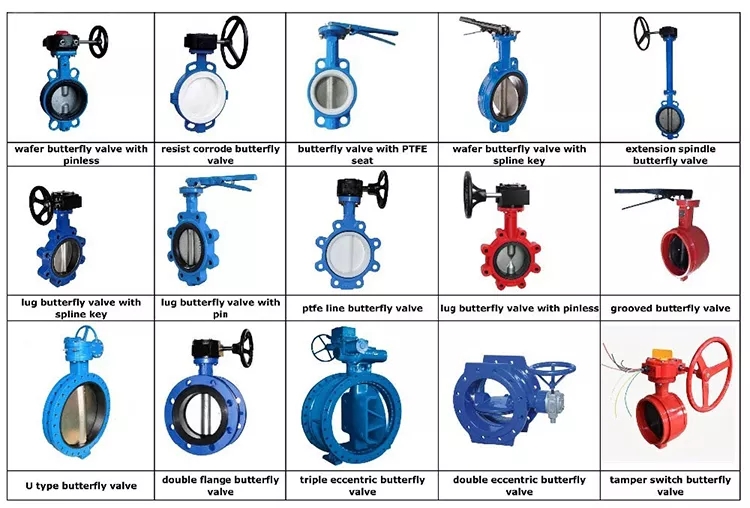

ALL VALVES.jpg
