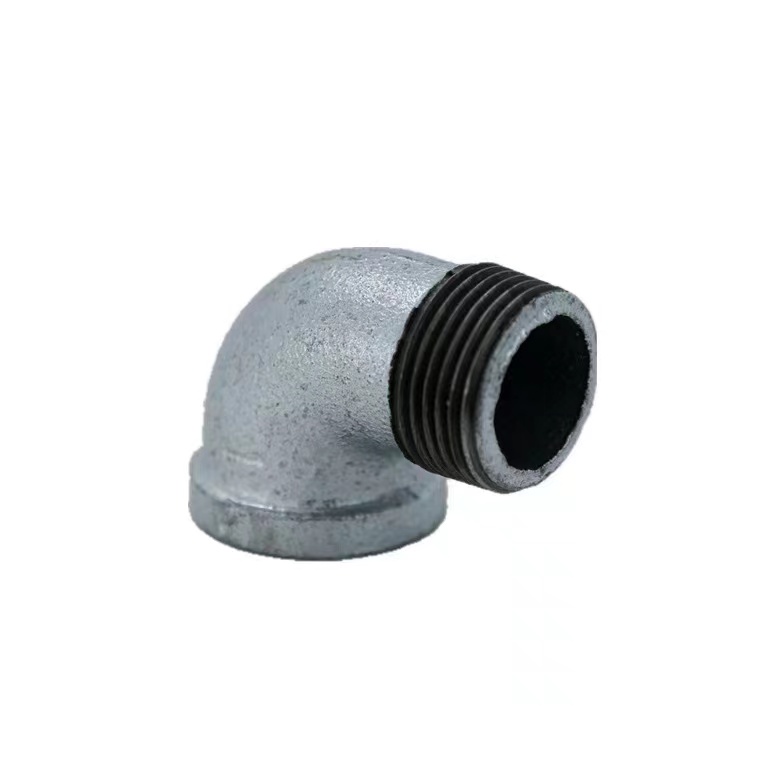

Galvanized Gi Elbow Pipe Fittings Malleable M&F ELBOW

The elbow is suitable for medium and low pressure pipeline systems, whose nominal pressure is not exceeding 2.5 MPa and working temperature range is between -20 °C and 120 °C. It is mainly applied in water, oil, air, gas, steam system, etc

Sent E-mail INQUIRY

DETAILS

Product Description

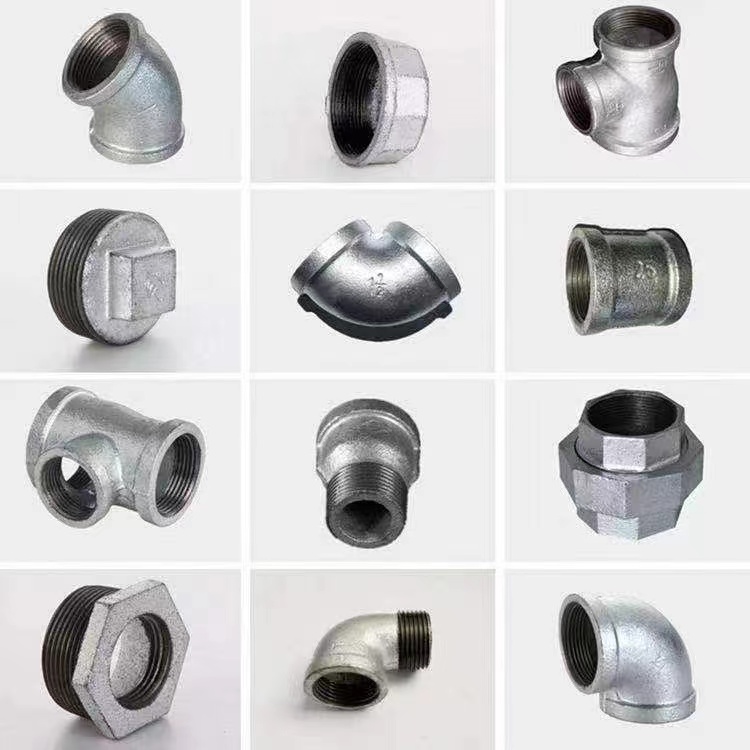

Product Name	Malleable iron fittings (1/8"- 6") (Elbow, Tee, Cross, Socket, Coupling, Plug, Cap, Back Nut, Union, Bushing, Nipple etc. )
Material	Malleable Iron--EN1562/ASTM A197/ ASTM A153
Surface Finish	Black/ Hot Galvanized/ Cold Galvanized/ Baked Galvanized
Standard	EN 10242; ISO 49; JIS B2301; ANSI/ASME B 16.3(Class150&Class300)
Thread	EN 10226; ISO 7-1; JIS B0203; ANSI/ASME B1.20.1;
Application	Conveying Water, Oil and Gas
